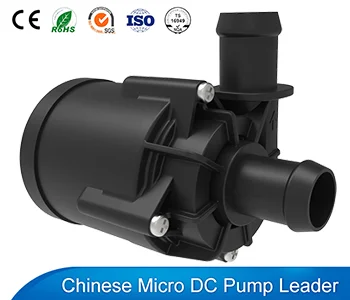

Dishwasher Circulation Pump VP60K is a water booster pump made by PPE material. It is widely used for dishwasher, medical equipment, LED water cooling, etc.
Dishwasher Circulation Pump VP60K is a small water circulation pump driven by a high efficiency dc brushless motor. It pumps the water into the nozzle, during the water press. While, during the draining process, dishwasher water pump transfer the water to the drain. It achieve the purpose of washing the dishes and drain water after these two process.
Dishwasher Circulation Pump VP60K with features of high water flow, long life, quiet and high efficiency. It made by PPE material which meet FDA standard, therefore, its very safety to people’s health. Except for using in Dishwasher, as a hot water booster pump, people also use VP60K pump for many other machines or applications. Such as cosmetic instruments, medical equipment, LED Cooling, Semiconductor Cooling, etc.
As a high performance food grade pump dishwasher circulation pump VP60K has below features:
Dishwasher Circulation Pump VP60K can be widely used for below machines or systems:
1 | Max Flow Rate | 55L/MIN |
2 | Max Static Lift | 5M |
3 | Rated Voltage | DC24V, AC220V |
4 | Impeller Type | Closed impeller |
5 | Food Grade(Y/N) | N |
6 | Liquid Temperature | 0°-100°C |
7 | Pump Theory | Centrifugal pump |
8 | Motor Type | DC brushless motor |
9 | Ambient Temperature | -25°-70°C |
10 | Media | Coolant/Pure Water |
11 | Waterproof Class | IP68 |
12 | Use Place | Indoor |
13 | Working Voltage Range | DC12V-30V, AC160~AC280 |
14 | Power Consumption | 40W, 50W |
15 | Noise Class form 1M | 40dB /(A) |
16 | Ideal Life Time | 20,000 Hours |
17 | Working Mode | Continuous |
18 | OD of Inlet | Φ20 |
19 | OD of Outlet | Φ20 |

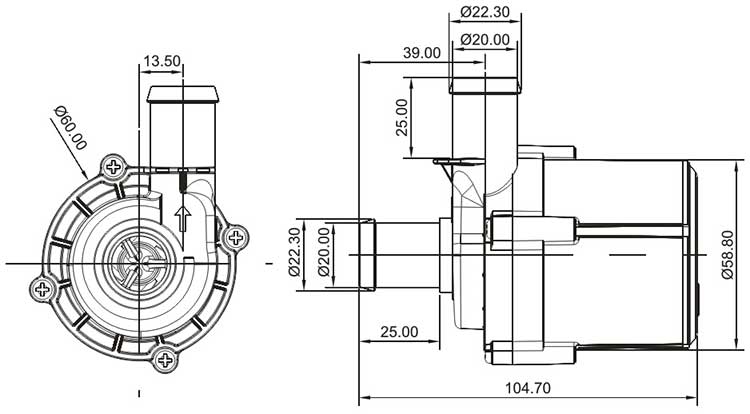

20 | Dimension | 104.7*58.8*89.1 mm |
21 | Weight | 0.43 kg |
22 | Power Supply | DC power supply, battery, solar powered |
23 | Remarks | Not Self-priming |

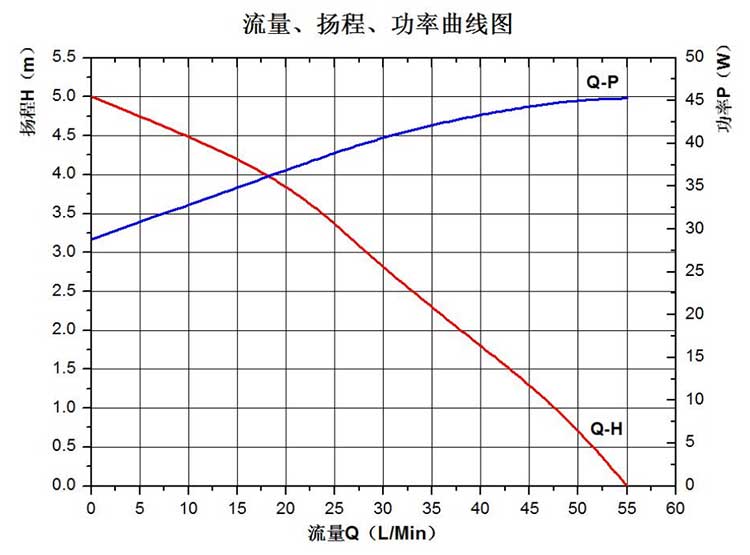

Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
24 | 12~30 | 1.65 | 5 | 55 | 40 | ≤40 |
AC220 | AC 160~280 | 0.32 | 5 | 55 | 50 | ≤45 |
