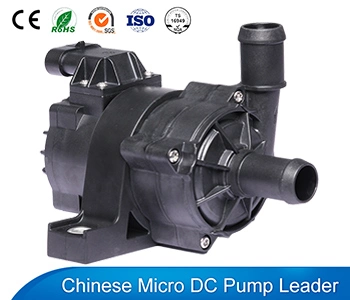

Race Car Electric Water Pump VP62E is a 12V coolant pump build by a bldc motor. VP62E pump can be used for race car, new energy bus, vehicle cooling systems.
As its name implies, race car electric water pump is a water pump with an electronically controlled drive unit, it is a type of automotive electric water pump. It is mainly built by a motor unit, impeller, pump head and an electronic control unit.
Race car electric water pump can adjust the working state of the pump freely. Such as: control pump start/stop, flow control, pressure control, anti-dry operation protection, self-maintenance, etc., As well as control the work status of the pump through external signals. As a 12V electric coolant pump, VP62E pump can work at -40 ° C ~ 125 ° C operating temperature. Its excellent performance can accurately control the engine water temperature range of the race car to improve vehicle reliability.
Race car electric water pumps are widely used in race cars, new energy bus, automotive engine cooling circulation systems, and their battery cooling systems.
1 | Max Flow Rate | 32L/MIN,35L/MIN |
2 | Max Static Lift | 7M/9M |
3 | Rated Voltage | 12V |
4 | Impeller Type | Closed impeller |
5 | Food Grade(Y/N) | N |
6 | Liquid Temperature | -40°-125°C |
7 | Pump Theory | Centrifugal pump |
8 | Motor Type | Brushless DC motor |
9 | Ambient Temperature | -40°-120°C |
10 | Media | Antifreeze/Pure Water |
11 | Waterproof Class | IP67 |
12 | Use Place | Vehicle/Indoor |
13 | Working Voltage Range | 8V-20V |
14 | Power Consumption | 37W/55W |
15 | Noise Class form 1M | 45dB /(A) |
16 | Ideal Life Time | 20,000 Hours |
17 | Working Mode | Continuous |
18 | OD of Inlet | 20 mm |
19 | OD of Outlet | 20 mm |

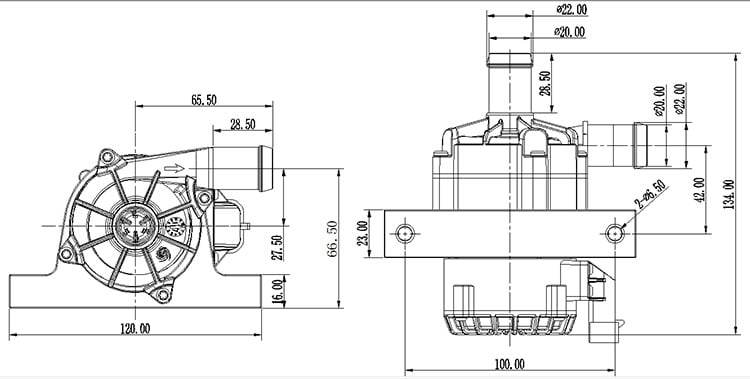

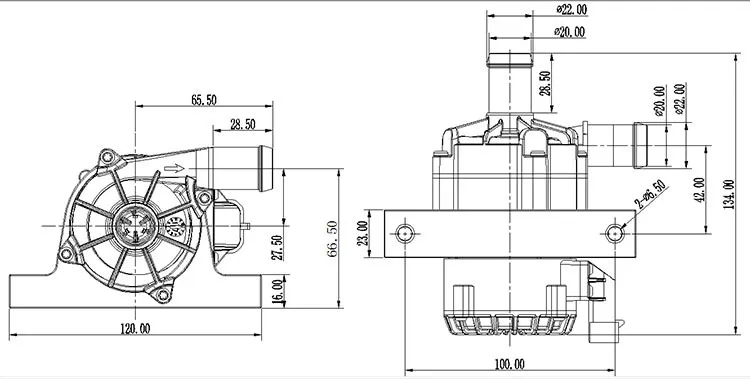

20 | Dimension | 134*120*80mm |
21 | Weight | 0.68 kg |
22 | Power Supply | DC power supply, battery, solar powered |
23 | Remarks | Not Self-priming |

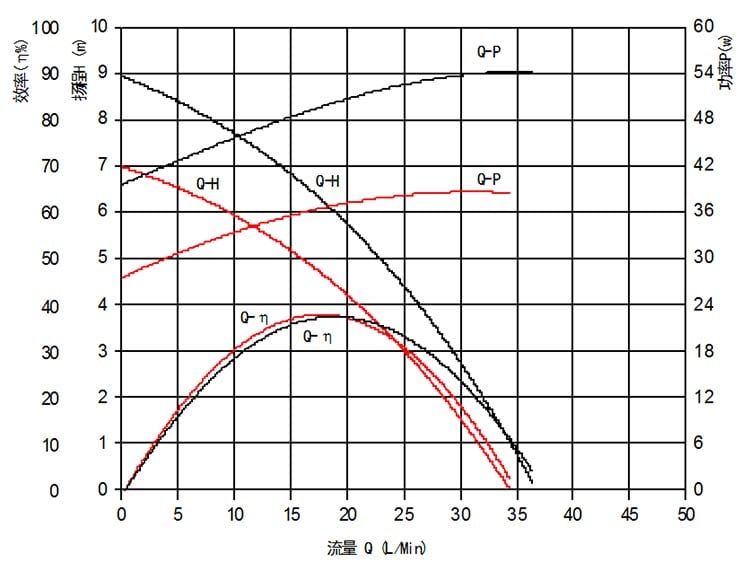

Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
12 | 8~20 | 3.1 | 7 | 32 | 37 | ≤40 |
12 | 8~20 | 4.6 | 9 | 35 | 55 | ≤45 |
