12v Auto Water Pump VP80E

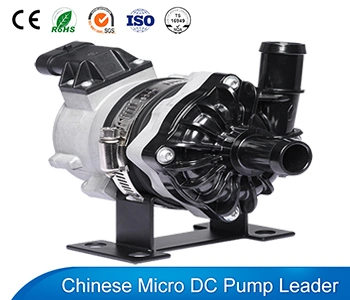

auto electric water pump vp80e

12v auto water pump VP80E is a small automotive electric water pump,which driven by a brushless dc motor. It is widely used for new energy car,bus, vehicle etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

14M
Max Flow

3300L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    12v auto water pump VP80E is a automotive electric water pump driven by a bldc motor .It is widely used in new energy vehicle auxiliary cooling cycle, Car cooler water cooling cycle,etc. And people also can use it as a intelligent toilet pump in smart toilet. As a brushless dc pump it with life span more than 20,000 hours and 50L/min large water flow. VP80E car electric water pump can serve for most of the new energy car,bus,vehicle.

    12V Auto Water Pump Features:

  • Driven method:Advanced Brushless dc Motor driving technology.
  • Life span: long life span more than 20,000 hours .
  • Working Fluids: Water, Antifreeze,oil, provide acid and alkali solution
  • FG signal output
  • Speed control way: PWM/CAN/Lin speed control function [optional].
  • IP protection level: IP67.
  • Blocked protection,Locked-rotor protection,Dry-running protection.

    • 12V DC Pump Application:

    This 12V auto water pump automotive are designed for new energy applications. It can be well used for auto,car,bus,vehicle applications.It can pump antifreeze,fresh water,and other liquids that are compatible with the pumps materials.

  • Car’s Warm air conditioner cycles
  • Car cooler water cooling cycle
  • New energy vehicle auxiliary cooling cycle
  • Battery cooling and auxiliary heating cycle
  • Torque converter cooling cycle
  • Intelligent toilet,Intelligent bathtub
  • Other bathroom and kitchen equipment

    • 12V Auto Water Pump application

    ■ Specifications
    1 Max Flow Rate 50L/MIN,55L/MIN
    2 Max Static Lift 10 M/14M
    3 Rated Voltage 13.5V/24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-120°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -40°-125°C
    10 Media Antifreeze
    11 Waterproof Class IP67
    12 Use Place Vehicle/Indoor
    13 Working Voltage Range 8V-20V,12V-32V
    14 Power Consumption 81W/108W
    15 Noise Class form 1M 50dB /(A)
    16 Ideal Life Time 20000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 20 mm
    19 OD of Outlet 20 mm
    20 Dimension 131*112*80mm
    21 Weight 0.97 kg
    22 Power Supply AC,DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    13.5 8~20 6 10 50 81 ≤48
    13.5 8~20 8 14 55 108 ≤50
    24 12~32 4.5 14 55 108 ≤50
    ■ Curve & Dimension

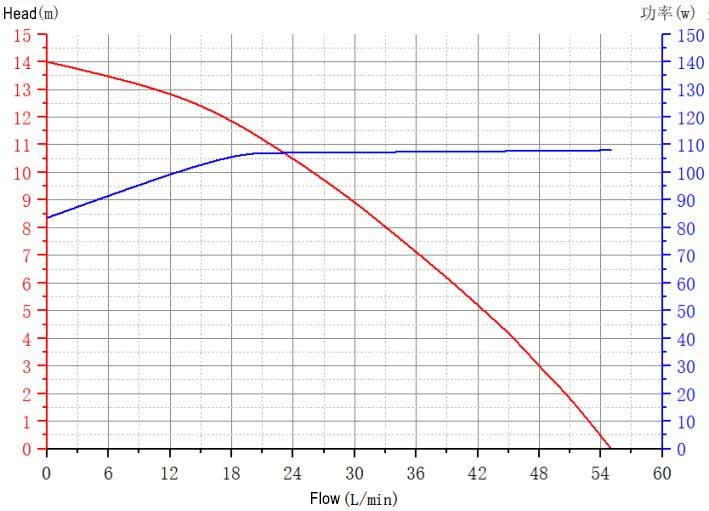

    Auto Water Pump 12v VP80E Head Flow

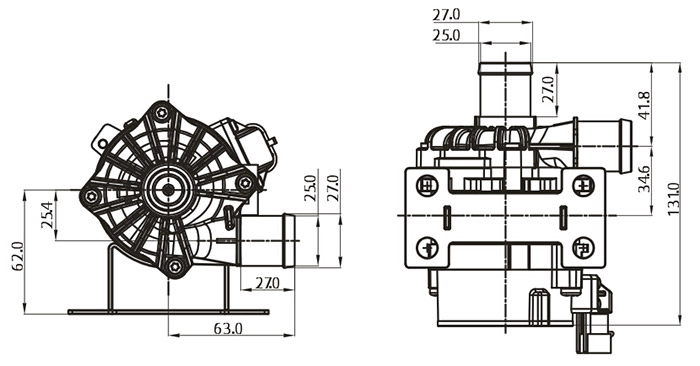

    Auto Water Pump 12v VP80E Size
