Laser Machine Pump VP60A

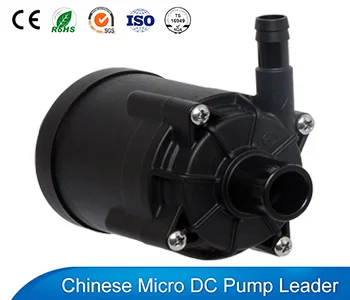

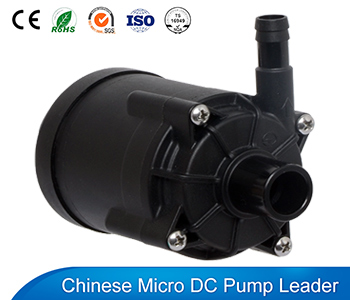

laser machine water pump vp60a

Laser Machine Pump VP60A is a 12v dc water pump motor powerd by a bldc motor. It is widely used in laser machine, laser cutter,laser engraver, etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

11M,20M,25M,32M
Max Flow

1200,1440,1500,1560L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Laser machine pump VP60A is a high quality made Laser Engraver Water Pump. The Water chiller of Laser machine require a high pressure water pump to circulation the water to cooling the machine, and VP60A with more than 11M water head pressure can fully meet this requirement. Moreover, VP60A pump is more safer, efficiency and lower power consumption compared with AC Laser cutter pump. That is because it is built by a brushless motor which has many advantages than ac type motor or brushed motor. As a high quality made Circulation Water Pump, Laser machine pump VP60A are widely used in various applications, such as: Laser machine pump, Laser cutter, laser engraver , water chiller, led cooling, CW3000 Chiller,and other cooling water circulation systems etc.

    Laser machine pump Features:

  • Motor type: dc brushless motor inside
  • Life span: 24 hours continuous running, working life span more than 20,000 hours
  • Low noise: VP60A pump working noise lower than 45dB
  • Low or no maintenance
  • Stall protection
  • Slipping protection
  • PWM or 0~5v speed adjust

    • Engraving machine Application:

  • Laser cooling machine .
  • CW3000 Chiller,
  • Laser cutting machine
  • Engraving machine
  • led cooling
  • Semiconductor and Other Water circulation
    • ■ Specifications
    1 Max Flow Rate 20L/MIN,24L/MIN,25L/MIN,26L/MIN
    2 Max Static Lift 11M,20M,25M,32M
    3 Rated Voltage 12V,24v,24V
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -25°-80°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -20°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 8V-12V,12~30Vdc
    14 Power Consumption 41W,65W,88W,120W
    15 Noise Class form 1M 45dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 Inlet OD 20mm
    19 Outlet OD 11mm
    20 Dimension 90.9mm*60mm*85mm
    21 Weight 0.38 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~12 3.4 11 20 41 ≤40
    24 12~30 2.7 20 24 65 ≤45
    24 12~30 3.66 25 25 88 ≤48
    24 12~30 5 32.0 26.0 120 ≤48

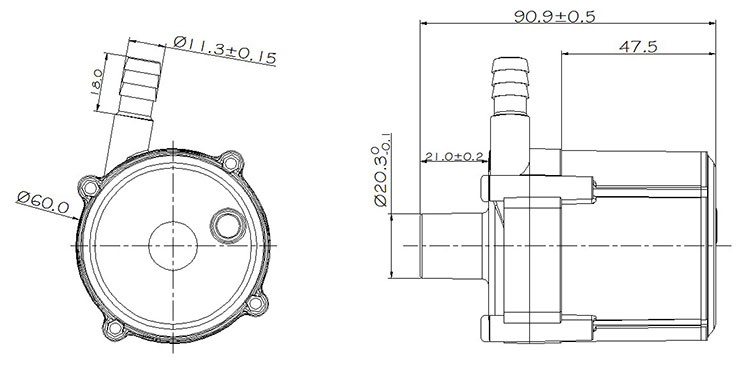

    ■ Curve & Dimension
    Laser Machine Pump VP60A size
