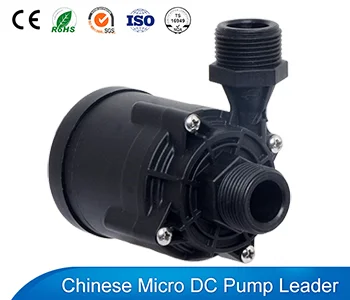

Intelligent Toilet Booster Pump VP60H

intelligent toilet booster pump vp60h

Intelligent Toilet Booster Pump VP60H aslo named smart toilet water pump. It is a 12V dc water pump. Widely used in intelligent toilet, intelligent bathtub etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

11M,20M,25M,32M
Max Flow

1200,1440,1500,1560L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Parameter
  • Specifications
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Intelligent toilet booster pump VP60H is a small booster water pump specially designed for using on smart toilets. It is usually driven by a 4.5V to 24V DC brushless motor.

    Intelligent toilet pump usually used in a smart toilet without water tank. It needs to flush the toilet by the pressure of the tap water, since there is no water tank. However, the pressure of the household tap water pipe is not enough, which requires a booster pump to solve this problem. So, a intelligent toilet booster pump come out, it can effectively, quickly and cleanly flush the toilet.

    Intelligent toilet booster pump with features of high water pressure, long life, quiet and high efficiency. It can make a wonderful match between the amount of water washed and the kinetic energy of the flushing. The amount of flushing water is determined according to the amount of large and small urine. The stool is generally between 2-3L, the urine is generally between 1-2L, and the water saving effect can reach more than 50%. As a small water circulation pump VP60H can also used in water circulation systems.

    Intelligent Toilet Booster Pump Features:

  • Motor: Brushless dc motor inside.
  • Life time: More than 20,000 hours life span.
  • Size: small in size
  • Water head: high in water pressure.
  • Ambient temperature -25~50℃
  • Working fluid temperature 0~50℃

    • Smart toilet Pump Application:

  • Intelligent toilet
  • Smart bathtub
  • Other water circulation systems

    • smart bathtub pump application

    ■ Specifications
    1 Max Flow Rate 20L/MIN,24L/MIN,25L/MIN
    2 Max Static Lift 11M,20M,25M,32M
    3 Rated Voltage 12V,24v,24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP67/IP68
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 41W,65W,88W,120W
    15 Noise Class form 1M 45dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 3/4 inch
    19 OD of Outlet 3/4 inch
    20 Dimension 95.4*95.8*60mm
    21 Weight 0.4 kg
    22 Power Supply DC power supply, battery, solar powered
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 3.4 11.0 20.0 41 ≤40
    24 12~30 2.7 20.0 24.0 65 ≤45
    24 12~30 3.66 25.0 25.0 88 ≤48
    24 12~30 5 32.0 26.0 120 ≤48
    ■ Curve & Dimension

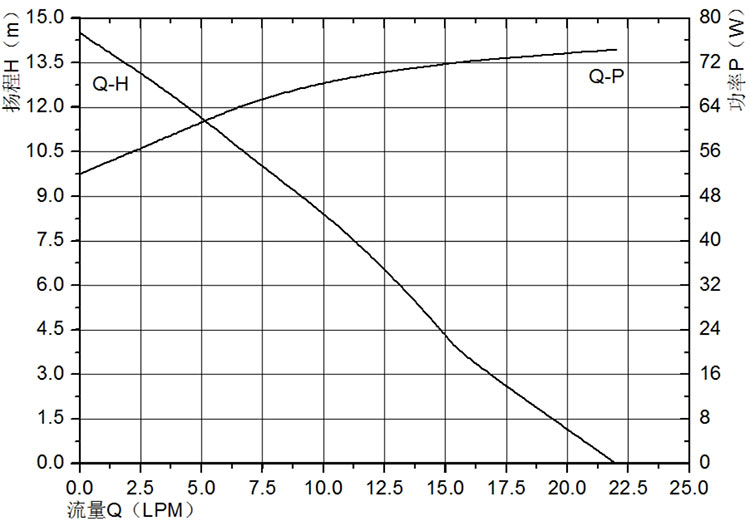

    Intelligent Toilet Pump VP60H flow

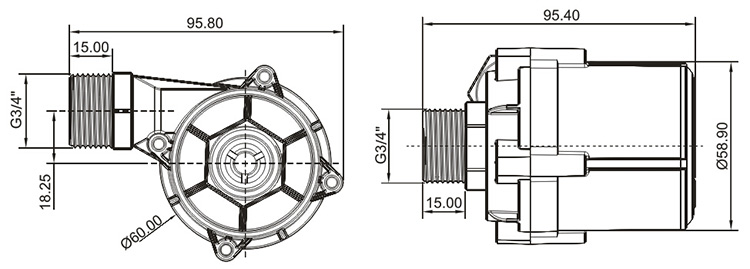

    Intelligent Toilet Pump VP60H size
