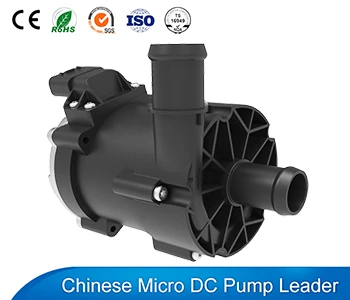

Electric Water Pump for Engine VP80A

electric coolant pump for car vp80a

Electric Water Pump for Engine Cooling VP80A is a car water pump. Widely used in circulating systems,such as new energy thermal management system, intelligent toilet.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

9M, 12M
Max Flow

2460L/H, 2880L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Electric Water Pump for Engine Cooling VP80A is a high quality made automotive electric water pump which built by a dc brushless motor. Widely used in Circulating systems, such as Pure electric buses motor control system, new energy thermal management system etc. It can wash smart toilet when used as a intelligent toilet pump. It can pump coolant, antifreeze, pure water. With long life span, widely working temperature, perfect performance VP80A pump has been widely applied in new energy auto, vehicle, bus and race car, intelligent toilet, etc.

    Electric Water Pump for Engine Cooling Features:

  • Driven method:Advanced brushless dc motor driving technology.
  • Life:More than 20,000 hours life span.
  • Duty work:can sustain continuous 24 hours work
  • Power supply: Battery,Power supply,solar panel.
  • Working Fluids: Water, Antifreeze, provide oil, acid and alkali solution
  • With FG signal output function [optional]
  •  Speed control way: PWM/Manual speed control function [optional].
  • IP protection level: IP67, submersible use .
  • Blocked protection,Locked-rotor protection,Dry-running protection

    • Electric Pump Application:

    Electric Water Pump for Engine cooling is a small racing electric water pump widely used for coolant and water circulation. Mainly used for car,bus, vehicle cooling circulation application.

  • Vehicle Warm air conditioner cycles
  • Pure electric buses motor control system hot water circulation
  • Intelligent toilet
  • Torque converter cooling cycle
  • Battery cooling and auxiliary heating cycle
  • New energy thermal management system
  • Other water circulation equipment

    • Electric Water Pump for Engine Cooling

    ■ Specifications
    1 Max Flow Rate 41L/MIN,48L/MIN
    2 Max Static Lift 9M/12M
    3 Rated Voltage 12V/24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type DC Brushles motor
    9 Ambient Temperature -40°-120°C
    10 Media Antifreeze/Pure Water
    11 Waterproof Class IP67
    12 Use Place Vehicle/Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 72W/108W
    15 Noise Class form 1M 48dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 20 mm
    19 OD of Outlet 20 mm
    20 Dimension 133.4*103*118 mm
    21 Weight 0.76 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 6 9 41 72 ≤48
    12 8~20 9 12 48 108 ≤50
    24 12~32 4.4 12 48 108 ≤50
    ■ Curve & Dimension

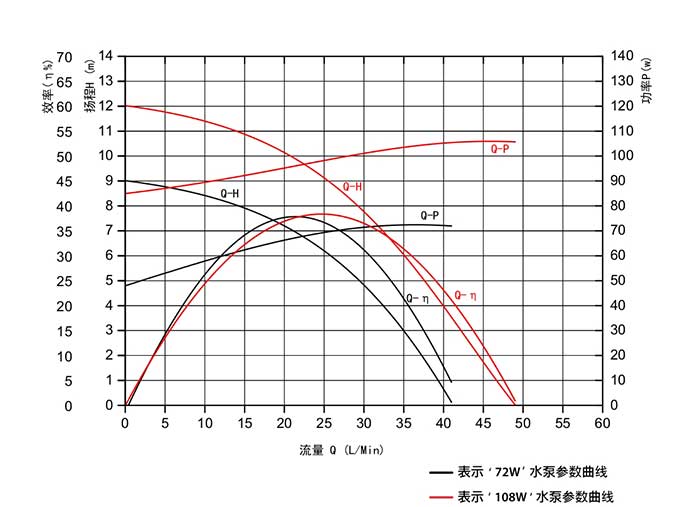

    Intelligent toilet water pump VP80A flow

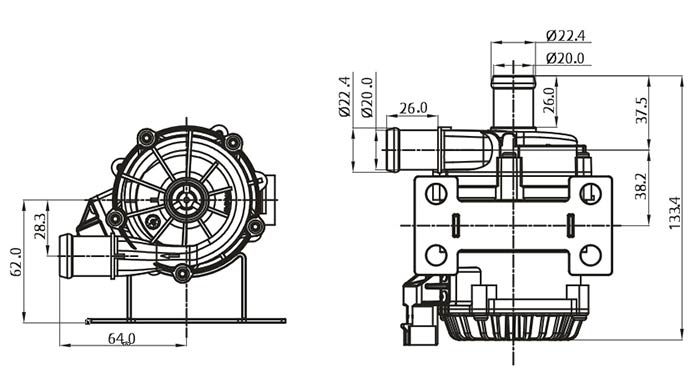

    Intelligent toilet water pump VP80A size
