Electric Water Pump For Engine VP90B

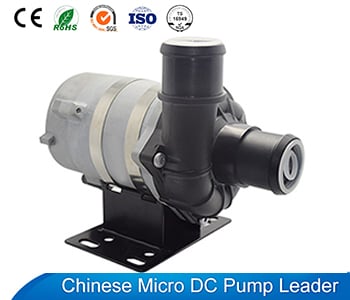

auto water pump vp90b

Electric Water Pump For Engine VP90B is a dc water pump which driven by a dc brushless motor. Widely used in Car Circulating systems,such as electric bus engine cooling.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

6M, 9M, 11M
Max Flow

9000L/H, 9900L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Electric Water Pump For Engine VP90B is a electric coolant pump which driven by a dc brushless motor. It is widely used as a hot water recirculating pump for water circulating systems. Such as 12M pure electric bus and hybrid bus motor control cooling cycle, intelligent bath crock etc. With it’s large flow more than 160L/min, VP90B can well served for new energy engine cooling, toilet and bath crock.

    Electric Water Pump For Engine Features:

  • Driven method: Its driven by a BLDC motor.
  • Long life: It can serve for more than 20,000 hours.
  • Power supply: Battery,Power supply,solar panels.
  • Working Fluids: Water, Antifreeze, provide oil, acid and alkali solution
  • With FG signal output function [optional]
  •  Speed control way: PWM/CAN/LIN speed control function [optional].
  • IP protection level: IP67, submersible use .
  • Special function : Blocked protection,Locked-rotor protection,Dry-running protection

    • Electric Pump Application:

    Electric Water Pump For Engine VP90B is a car electric water pump which can be used for Engine cooling cycle. Suitable for applied in auto,car,bus,intelligent toilet,Intelligent bathtub. It can pump antifreeze,fresh water,and other liquids.

  • Engine cooling cycle electronic pump
  • Pure electric buses motor control system hot water circulation
  • 12M pure electric bus and hybrid bus motor control cooling cycle
  • Torque converter cooling cycle
  • Intelligent bathtub
  • Intelligent toilet
  • Other bathroom and kitchen equipment

    • electric water pump for engine VP90B applicationelectric water pump for engine VP90B applications

    ■ Specifications
    1 Max Flow Rate 150L/MIN,165L/MIN
    2 Max Static Lift 6M,9M,11M
    3 Rated Voltage 24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -40°-120°C
    10 Media Antifreeze/Pure Water
    11 Waterproof Class IP67
    12 Use Place Vehicle/Indoor
    13 Working Voltage Range 12V-30V
    14 Power Consumption 150W,200W,260W
    15 Noise Class form 1M 50dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 38 mm
    19 OD of Outlet 38 mm
    20 Dimension 191*119*165.8 mm
    21 Weight 2.55 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    24 12~30 6.3 6 150 150 ≤50
    24 12~30 8 9 150 200 ≤50
    24 12~30 11 11 165 260 ≤50
    ■ Curve & Dimension

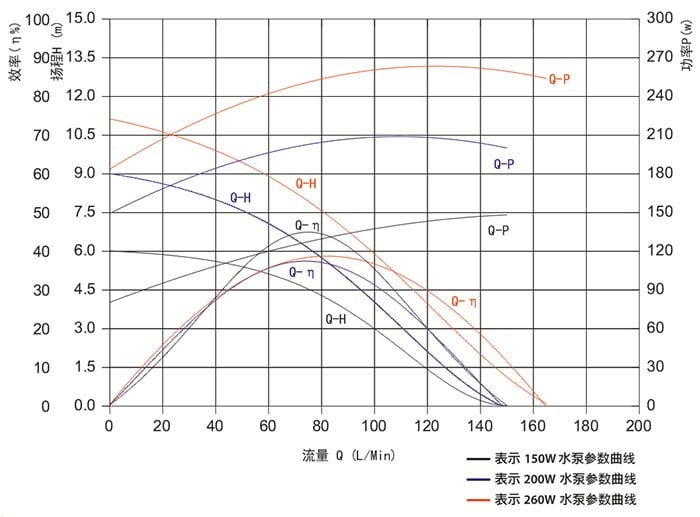

    pump VP90B flow

    electric pump VP90B size
