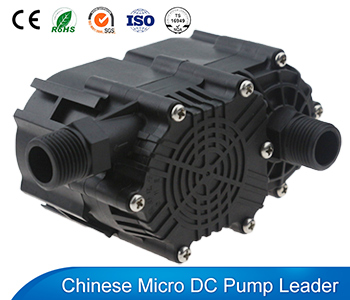

Laser Cutter Water Pump VP60F

laser cutter water pump vp60f

Laser Cutter Water Pump VP60F is a high pressure water pump, which driven by a BLDC motor. It is widely used in laser cutter machine, water heater, etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

25M,30M
Max Flow

1200L/H,1500L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Laser Cutter Water Pump VP60F is a made by PEE,it is a small DC Laser Engraver Water Pump. VP60F has very high performance in water head and water flow that deigned for the cooling of Laser cutter and laser machine. The Water head pressure of VP60F is as high as 27M,which suitable for application that required high water pressure. VP60F pump with more longer life, more higher efficiency compared with Brushed motor powered Laser cutter pump. Also, its motor speed can be adjust by 0~5v voltage or PWM signal. With so high performance and so many function Hot Water Recirculating Pump VP60F are widely used in Laser cutter, water chiller, water heater, home appliance and other cooling or hot water circulation systems.

    DC Pump VP60F Features:

  • Motor type: Built by dc brushless motor
  • Long life span: Can work for more than 20000 hours
  • Low noise: Working noise lower than 45dB test from 1 meter distance
  • Low or no maintenance
  • Stall protection
  • Slipping protection
  • PWM or 0~5v voltage speed adjust function

    • Laser cutter Water pump VP60F Application:

  • Laser cutter
  • Water Chiller
  • Water heater
  • Engraving machine
  • led cooling
  • Other Water circulation
    • ■ Specifications
    1 Max Flow Rate 20L/MIN,25L/MIN
    2 Max Static Lift 25M,30M
    3 Rated Voltage 12V,24v
    4 Impeller Type Close impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP32
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 108W,120W
    15 Noise Class form 1M 55dB /(A)
    16 Ideal Life Time 15,000 Hours
    17 Working Mode Continuous
    18 Inlet OD 1/4 inch thread
    19 Outlet OD 1/4 inch thread
    20 Dimension 156*97.6*75mm
    21 Weight 0.86 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 9 25 20 108 ≤50
    24 12~30 5 30 25 120 ≤55

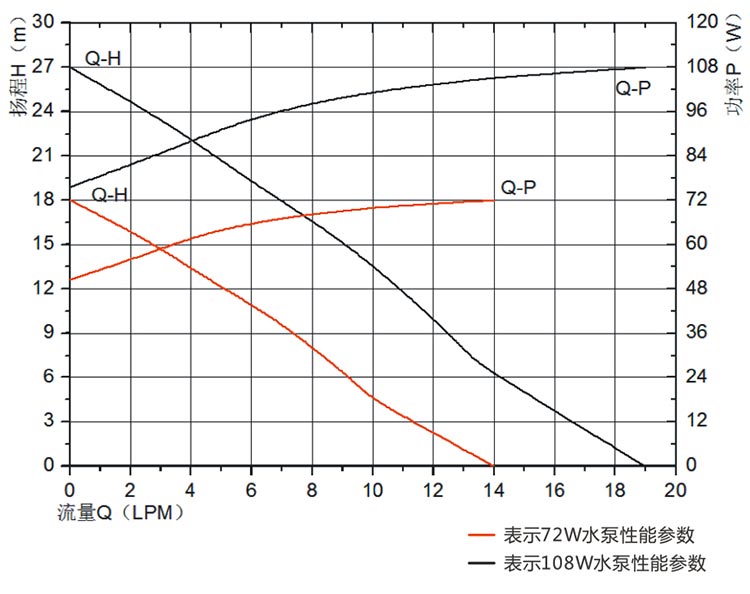

    ■ Curve & Dimension
    Laser Cutter Water Pump VP60F flow
