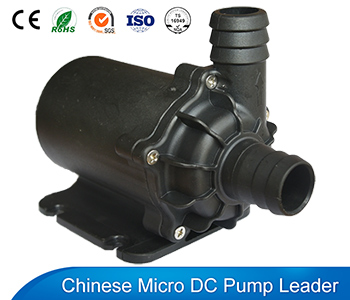

Solar Domestic Pump VP50

solar domestic pump vp50

Solar domestic pump VP50 driven by a bldc motor, widely used for solar farm irrigation, agricultural spray, field water intake, journey shower washing etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

4.5M, 10M
Max Flow

1896L/H, 3000L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Solar Domestic Pump VP50 is a solar powered water pump made by material meet ROHS requirements. VP50 pump can be powered by battery,solar panel,dc power supply, and with 0~5v or PWM speed adjust function. It working fluid temperature can be as high as 100℃ and life span is more than 30000 hours. Solar Domestic Pump VP50 is widely used for domestic water circulation system as a hot water recirculating pump. Moreover, people can also use it for solar farm irrigation, agricultural spray, field water intake, water circulation journey shower washing, new energy vehicle cooling cycle, etc.

    Solar Domestic Pump Features:

  • Motor type: brushless motor inside
  • Working life span: More than 25,000 hours
  • Low working noise: VP50E working noise is lower than 40dB
  • Max working temperature : VP50E can pump 100℃ fluids
  • Speed ajust way: 0~5V voltage, PWM speed adjustable

    • DC Pump VP50 Application:

  • Out door Solar water heater
  • Solar farm irrigation
  • Agricultural spray.
  • Domestic water circulation system
  • Field water intake
    • ■ Specifications
    1 Max Flow Rate 31.6L/MIN,50L/MIN
    2 Max Static Lift 4.5M,10M
    3 Rated Voltage 12V,24v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -10°-100°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 6V-14V,10V-26V
    14 Power Consumption 48W,88.8W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time >30,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 22mm
    19 OD of Outlet 22mm
    20 Dimension 125mm*66.5mm*92mm
    21 Weight 0.65 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 6~14 4 4.5 31.6 48 ≤40
    24 10~26 3.7 10 50 88.8 ≤40
    ■ Curve & Dimension

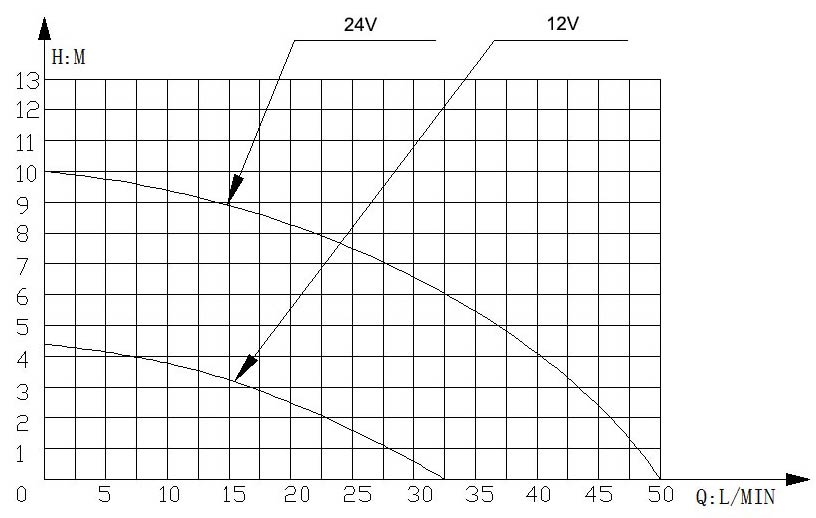

    Domestic Pump VP50 flow

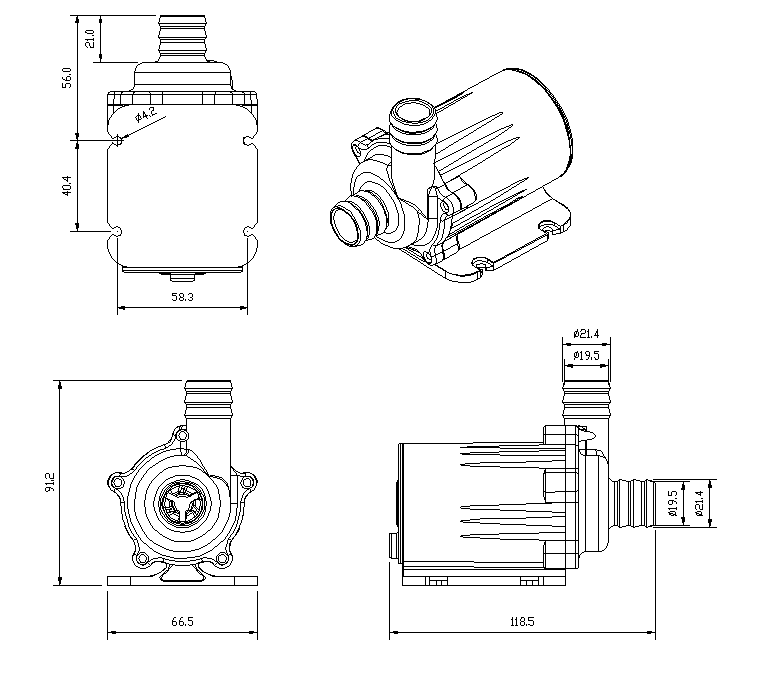

    Domestic Pump VP50 size
