Solar Water Heater Pump VP40S

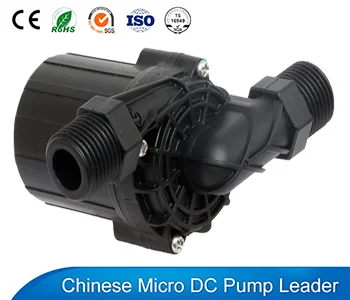

solar water heater pump vp40s

Solar water heater pump VP40S is a mini solar powered heater pump, widely used in solar water heater, pipeline booster, pressure-bearing water tanks etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

3M, 15M
Max Flow

480L/H, 750L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Solar Water Heater Pump VP40S is a mini solar powered hot water booster pump. It is made by PPE material. And built by a high efficiency brushless dc motor with life span more than 20,000 hours. VP40S with special function such as dry-running protection, blocked-Protection etc. With high performance on endure high temperature, it is widely used in various applications such as out door solar water heater, pipeline booster, pressure-bearing water tanks etc. Furthmore people can also use VP40S as a hot water recirculating pump for hot water circulation.

    Solar Pump VP40S Features:

  • Life span: VP40S can sustain 24 hours continuous running, and can work for more than 20,000 hours
  • High efficiency: DC brushless motor with long life span
  • Low noise : Work noise of Solar Water heater pump VP40S is lower than 35dB
  • Max working temperature : As a hot water booster pump it can endure 100℃ working temperature.
  • Low or no maintenance

    • Solar Water Heater Pump Application:

  •  Out door solar water heater
  •  Wall Mounted Solar water heater
  •  Pipeline booster.
  • Separated water heater
  • Hot pump air conditioner
  • Other Water circulation

    • solar water heater pumps vp40s application

    ■ Specifications
    1 Max Flow Rate 8L/MIN,12.5L/MIN
    2 Max Static Lift 3M,15M
    3 Rated Voltage 12V,24v
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature 0°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP32
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 6W,31W
    15 Noise Class form 1M 35dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/2 inch
    19 OD of Outlet 1/2 inch
    20 Dimension 82.3*102*46.4mm
    21 Weight 0.24 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.5 3.0 8.0 6 ≤35
    24 12~30 1.3 15.0 12.5 31 ≤40
    ■ Curve & Dimension

    solar water heater pumps vp40s flow

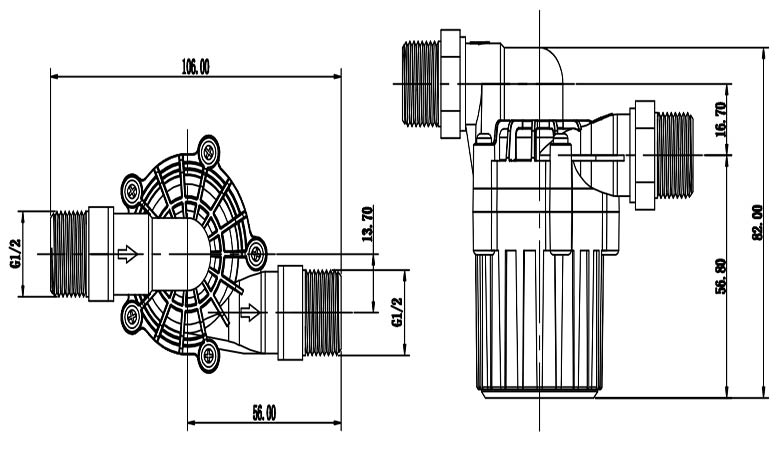

    solar water heater pumps vp40s size
