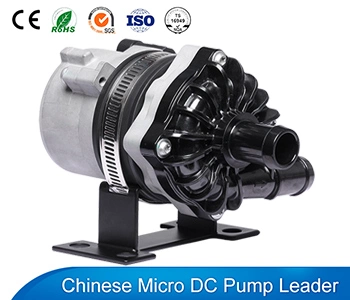

12V Electric Water Pump Auto VP80F

automotive electric water pump for car vp80f

12v electric water pump automotive VP80F is a high quality made car electric water pump,it is widely used in new energy auto cooling water circulation, Car’s Warm air conditioner cycles,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

14M
Max Flow

3300L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    12 volt electric water pump automotive VP80F is a high quality made automotive electric water pump. It is widely used in new energy automotive cooling water circulation, car’s warm air conditioner cycles, etc. People also can use it as a electric coolant pump in new engergy vehicels or motorcycle for battery cooling. VP80F automotive electric water pump with life span more than 20000 hours, it can work in fluids that with as high as 125℃ temperature.

    12 volt electric water pump automotive Features:

  • Driven method:Advanced BLDC Motor driving technology without any leakage.
  • Life:long life span more than 15,000 hours .
  • Duty work:It can sustain continuous 24hours work.
  • Power supply : Motor designed suitable for battery,Power supplying.
  • Working Fluids: Can be used to pump water, Antifreeze，oil, acid and alkali solution.
  • FG signal output
  • Speed control way: PWM/Manual speed control function [optional].
  • IP protection level: IP67.
  • Blocked protection,Locked-rotor protection,Dry-running protection.

    • 12V DC Pump Application:

    This 12 volt electric water pump automotive is designed for general, commercial and industrial applications. Ideal for auto,car,bus,vehicle applications.It can pump antifreeze,fresh water,and other liquids that are compatible with the pumps materials.

  • Car’s Warm air conditioner cycles
  • Pure electric buses motor control system hot water circulation
  • Hybrid buses motor control system hot water circulation
  • New Energy automotive cooling water circulation
  • Circulating systems for homes, RV’s and boats
  • Cold water cycle in Car
  • Other water circulation applications
    • 12 volt electric water pump automotive application
    12 volt electric water pump automotive VP80F’s application

    Electric water pump automotive Usage Notice :

    1.Operating voltage exceeds the rated voltage is not allowed.
    2.Environmental temperature and fluid temperature should be within the rated temperature.
    3.Filter measures should be taken when used in foul water environment.
    4.Only DC power can be used.
    5.Acidic or alkaline liquid is prohibited (except customized).

    ■ Specifications
    1 Max Flow Rate 55L/MIN
    2 Max Static Lift 14 M
    3 Rated Voltage 13.5V/24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -40°-125°C
    10 Media Antifreeze
    11 Waterproof Class IP67
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-32V
    14 Power Consumption 108W
    15 Noise Class form 1M 50dB /(A)
    16 Ideal Life Time 20000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 20 mm
    19 OD of Outlet 20 mm
    20 Dimension 131*103*118 mm
    21 Weight 0.71 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    13.5 8~20 8 14 55 108 ≤50
    24 12~32 4.5 14 55 108 ≤50
    ■ Curve & Dimension

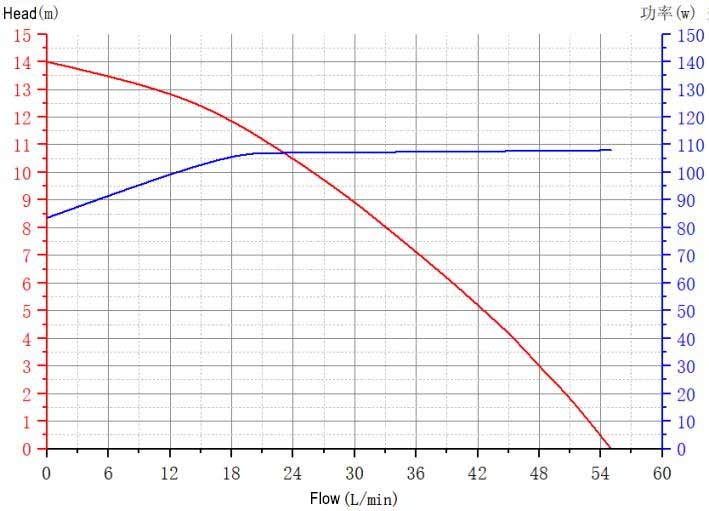

    VP80F Pump Head and Flow

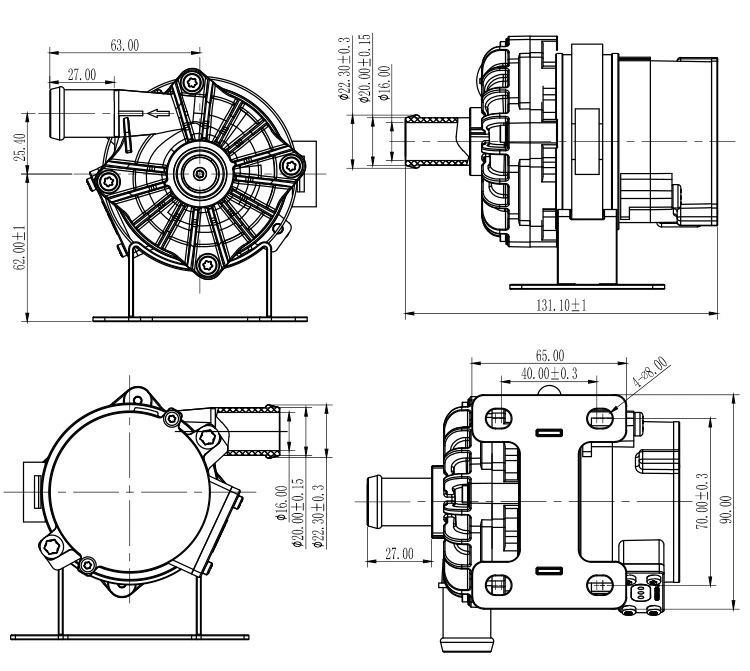

    Size of automotive electric water pump VP80F
