Computer Water Cooling Pump VP40P is a small ultra quiet water pump,it's noise less than 24dB. Widely used for quiet equipment such as hot water mattress, cooling mattress, computer cooling,floor heating system etc.

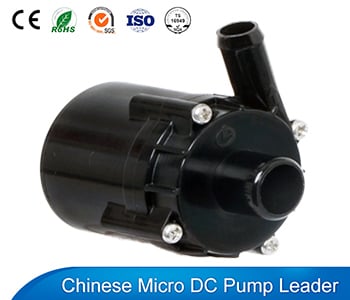

Computer Water Cooling Pump VP40P is a mini ultra quiet water pump. It is built by a brushless dc motor that makes it with long life span more than 30,000 hours. With lower noise less than 24dB at 1M distance. VP40P can be used as a PC water cooling pump for CPU cooling. It is also designed to be used for appliance and equipment that with quiet requirements such as hot water mattress, small boiler, cooling circulation systms.
1 | Max Flow Rate | 4.8L/MIN,6L/MIN |
2 | Max Static Lift | 2M,3M |
3 | Rated Voltage | 12V |
4 | Impeller Type | Open impeller |
5 | Food Grade(Y/N) | N |
6 | Liquid Temperature | 0°-70°C |
7 | Pump Theory | Centrifugal pump |
8 | Motor Type | DC Brushless motor |
9 | Ambient Temperature | -25°-70°C |
10 | Media | Pure Water/Antifreeze |
11 | Waterproof Class | IP22 |
12 | Use Place | Indoor |
13 | Working Voltage Range | 8V-20V |
14 | Power Consumption | 3W,6W |
15 | Noise Class form 1M | 24dB /(A) |
16 | Ideal Life Time | 30,000 Hours |
17 | Working Mode | Continuous |
18 | OD of Inlet | 10.0 mm |
19 | OD of Outlet | 16.5 mm |
20 | Dimension | 52.8*40*58.9mm |
21 | Weight | 0.1kg |
22 | Power Supply | DC power supply, battery, solar powered |
23 | Remarks | Not Self-priming |
Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
12 | 8~20 | 0.25 | 2 | 4.8 | 3.0 | ≤24 |
12 | 8~20 | 0.5 | 3.0 | 6.0 | 6.0 | ≤28 |
