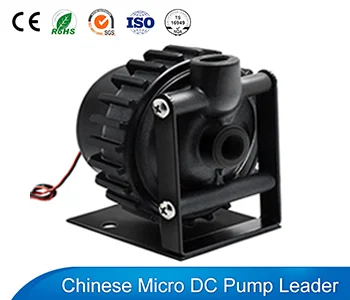

Computer Water Pump VP60E

cpu water pump vp60e

Computer Water Pump VP60E is a mini dc PC water pump built by a 12V BLDC motor. Used for computer cooling,led lights cooling, and other water circulation equipment.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

3.7M
Max Flow

660L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
  • Inquiry
    •
    ■ Overview

    Computer Water Pump VP60E is a dc mini electric PC water cooling pump. It is driven by a 12 volt dc brushless electric motor. With it’s perfect quiet performance long life span. Due to its ultra quiet working noise, it is usually used as a quiet water pump for various water circulation system. Such as computer cooling, led lights cooling, hot water mattress, and other water circulation equipment etc. It’s a good choice for people to use it in CPU cooling system as a water cooling component.

    Computer Water Pump Features:

  • Duty work: It can sustain working for 24 hours per day
  • High efficiency: efficiency more than 60%
  • Low noise : low to 28dB at 1m distance
  • Max temperature : It can can work below 70℃ fluid temperature

    • Computer Water Pump Application:

  • PC Water cooling system
  • LED lights water cooling
  • Cooling /plumbing mattress water circulation
  • Other machines which require low work noise

    • computer water pump VP60E application

    ■ Specifications
    1 Max Flow Rate 11L/MIN
    2 Max Static Lift 3.7M
    3 Rated Voltage 12V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-70°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP32
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V
    14 Power Consumption 21W
    15 Noise Class form 1M 30dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/4 inch
    19 OD of Outlet 1/4 inch
    20 Weight 0.58 kg
    21 Power Supply DC power supply, battery, solar powered
    22 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 1.7 3.7 11.0 21.0 ≤28
    12 8~20 1.7 3.7 11.0 21.0 ≤28
    ■ Curve & Dimension

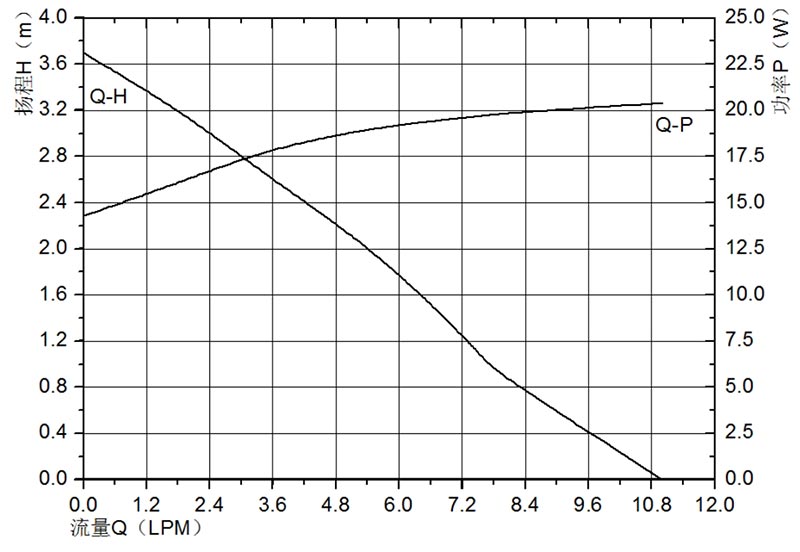

    cpu water pump VP60E flow

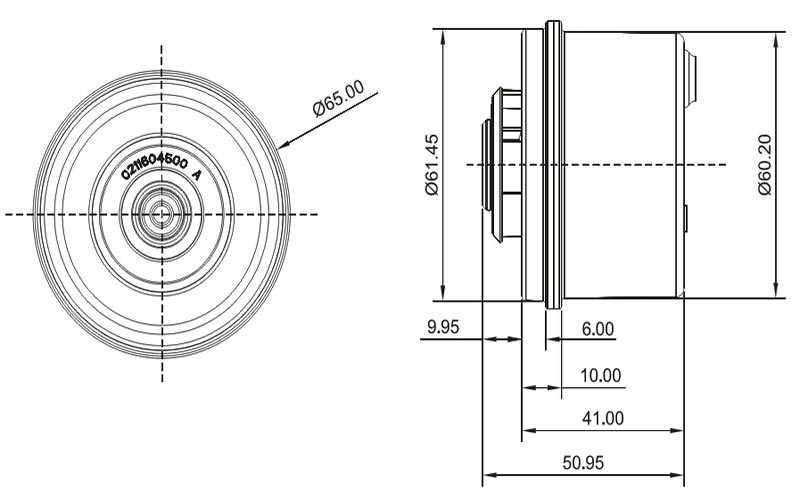

    cpu water pump VP60E size
