■ Overview

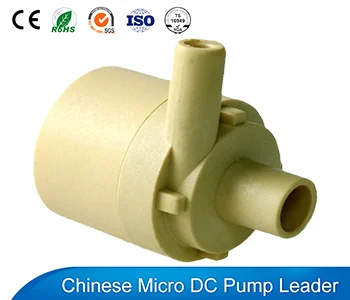

Food grade pump dispenser VP25A is a high quality made 12 volt food grade pump. People widely use it in home appliance. Such as coffer maker, juice machine, dispenser, personal care products, etc. Apply with ceramic sleeve and ceramic shaft in the pump, it’s life span is more than 20,000 hours and noise lower than 30dB.
Food grade pump dispenser Features:
VP25A Application:
Food grade pump dispenser DP2502 is a mini electric water pump. People use it for water circulation and water cooling. Suitable for applying in Water dispenser,coffee maker,beverage dispenser,Water purifier. Mainly used for pump pure water,and other juice,coffee,milk.
■ Specifications
| 1 | Max Flow Rate | 0.9L/MIN,1.3L/MIN/2L/MIN |
| 2 | Max Static Lift | 1M,1M,2.0M |
| 3 | Rated Voltage | 3V, 6V,12V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | Y |
| 6 | Liquid Temperature | 0°-100°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | Brushless dc motor |
| 9 | Ambient Temperature | -25°-70°C |
| 10 | Media | Pure Water |
| 11 | Waterproof Class | IP68 |
| 12 | Use Place | Indoor |
| 13 | Working Voltage Range | 3V-12V |
| 14 | Power Consumption | 0.21W,0.9W,3.8W |
| 15 | Noise Class form 1M | 30dB /(A) |
| 16 | Ideal Life Time | 20,000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 9.7 mm |
| 19 | OD of Outlet | 7.0 mm |
| 20 | Dimension | 35.9*26*36mm |
| 21 | Weight | 0.02 kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
