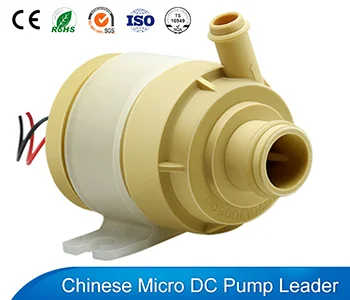

Food Safe Liquid Pump VP30C

food grade liquid pump vp30c

Food safe liquid pump VP30C is Battery powered pump powered by a 12V BLDC motor.It is widely used in coffer maker, juice machine, dispenser, tea maker, etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

1.5M,2M
Max Flow

150L/H,180L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Food safe liquid pump VP30C is a food grade pump, which powered by BLDC motor.It is designed to be quiet, long life span. A variety of applications, including pump pure water for coffer maker, juice machine,dispenser, tea maker, etc. As a quiet water pump the work noise of VP30C is lower than 30dB. Moreover, our food grade water pump VP30C with long life span more 20,000 hours. It also can be work with as high as 100℃ temperature fluids.

    Food safe liquid pump Features:

  • Driven motor: It is use advanced magnetic driving technology, static-seal without any leakage forever
  • High efficiency: It is built by a brushless dc motor with high efficiency more than 60%
  • Food grade: All wetted materials FDA certified (food safe)
  • Max temperature : 100℃
  • Low or no maintenance
  • IP protection level: IP68
  • Over current protection, over-load protection

    • liquid pump Application:

    Food safe liquid pump is a mini electric centrifugal water pump, it is used for water circulation and water cooling. They can pump fresh water and other FDA liquids for water dispenser, coffee maker, beverage dispenser, tea maker, Milk dispenser.

  • Water dispenser/water coolers
  • Coffee maker/coffee machine
  • Beverage dispenser/juice machine
  • Water purifier
  • Tea maker
  • Milk dispenser
  • The fountain
  • Hydroponics

    Food safe liquid pump VP30C application

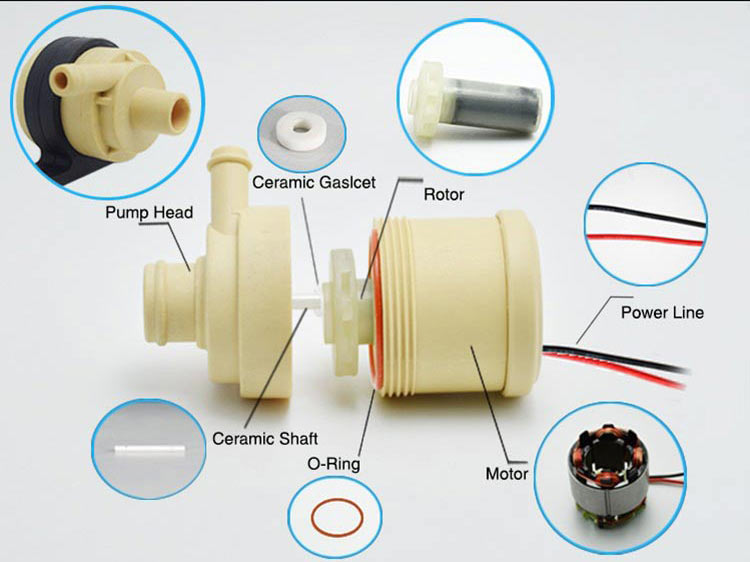

    food grade transfer pump VP30C structure

    • ■ Specifications
    1 Max Flow Rate 2.5L/MIN,3L/MIN
    2 Max Static Lift 1.5M,2.0M
    3 Rated Voltage 6V,12V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) Y
    6 Liquid Temperature -40°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water
    11 Waterproof Class IP68
    12 Use Place Indoor
    13 Working Voltage Range 4V-9V,8V-20V
    14 Power Consumption 5.4W,6.9W
    15 Noise Class form 1M 30dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 15.2 mm
    19 OD of Outlet 8.1 mm
    20 Dimension 48*45*34mm
    21 Weight 0.04 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    6 4~9 0.9 1.5 2.5 5.4 ≤30
    12 8~20 0.57 2.0 3.0 6.9 ≤30
    ■ Curve & Dimension

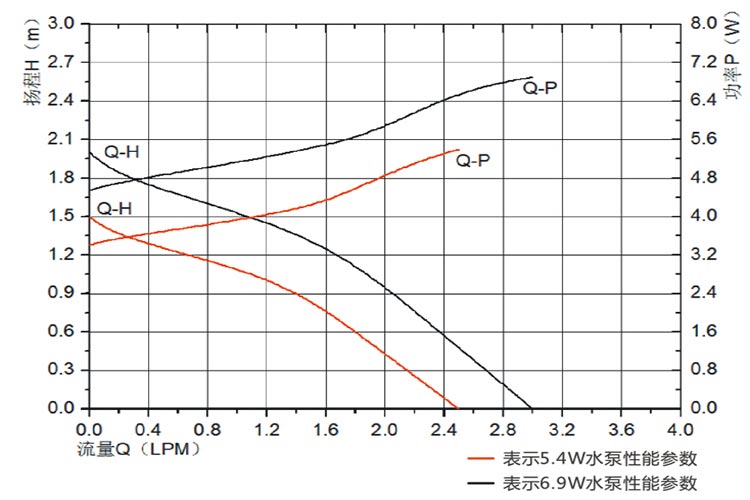

    food grade liquid pump VP30C flow

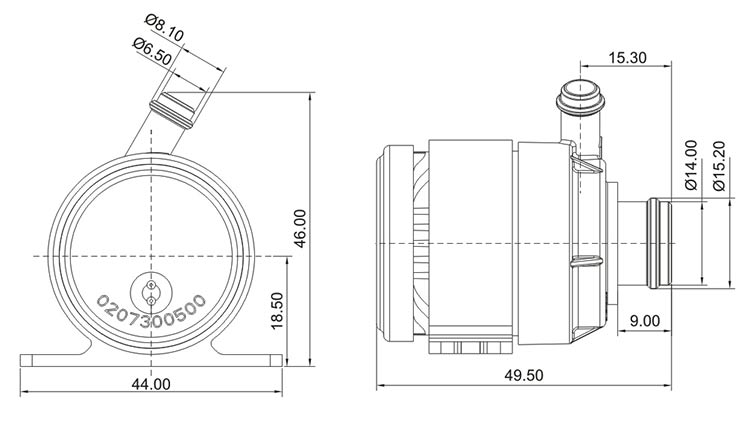

    transfer pump VP30C size
