Inline Water Pump for Car VP80D

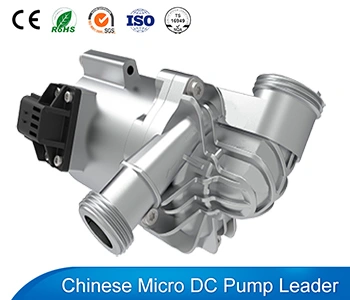

automotive water pump vp80d

Inline Water Pump for Car VP80D is a bldc motor driven automotive electric water pump. Used in auto warm air conditioner, intelligent toilet, intelligent bathtub etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

10M, 12M
Max Flow

3000L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview
    Inline Water Pump for Car VP80D is small electric water pump driven by a brushless dc motor. It widely use as a automotive electric water pump in automobile warm air conditioner cycle, etc. In additional, people can also use VP80D as a intelligent toilet pump for intelligent toilet installed in bathroom. VP80D pump is a good choice for using in vehicle cooling cycle systems as well as bathroom and kitchen equipment.

    Inline Water Pump for Car Features:

  • Life:More than 15,000 hours life span.
  • Power supply : Battery, DC Power supply,Solar panels.
  • Working Fluids: Water, Antifreeze, provide oil, acid and alkali solution.
  • With FG signal output function.
  • Speed control way: PWM/CAN speed control function [optional].
  • IP protection level: IP67, submersible use .
  • Blocked protection,Locked-rotor protection,Dry-running protection.

    • Inline Water Pump for Car Application:

    This Inline Water Pump for Car is a new designed product which mainly used for commercial and industrial applications. Ideal for auto, car, bus, intelligent toilet, intelligent bathtub and other bathroom and kitchen equipment. It can pump antifreeze, fresh water, and other liquids that usually used for pumps in the market.

  • Automobile warm air conditioner cycle
  • Pure electric buses motor control system hot water circulation
  • Vehicle cooling cycle
  • New Energy automotive cooling water circulation
  • Intelligent toilet, RV’s and boats
  • Battery cooling and auxiliary heating cycle
  • Other kitchen equipment

    • VP80D Pump application

    Car Pump Usage Notice :

    1.Operating voltage should be within the Range of the working Voltage .
    2.Environmental temperature and fluid temperature should be within the rated temperature.
    3.Filter measures should be taken when used in foul water environment.
    4.Only DC power can be used.
    5.Acidic or alkaline liquid is prohibited (except customized).

    ■ Specifications
    1 Max Flow Rate 50L/MIN
    2 Max Static Lift 10 M/12M
    3 Rated Voltage 13.5V/24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -40°-125°C
    10 Media Antifreeze/Water
    11 Waterproof Class IP67
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 81W/125W
    15 Noise Class form 1M 50dB /(A)
    16 Ideal Life Time 15,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 24 mm
    19 OD of Outlet 17 mm
    20 Dimension 135*103*106 mm
    21 Weight 0.9 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    13.5 8~20 6 10 50 81 ≤50
    24 12~30 5.2 12 50 125 ≤50
    ■ Curve & Dimension

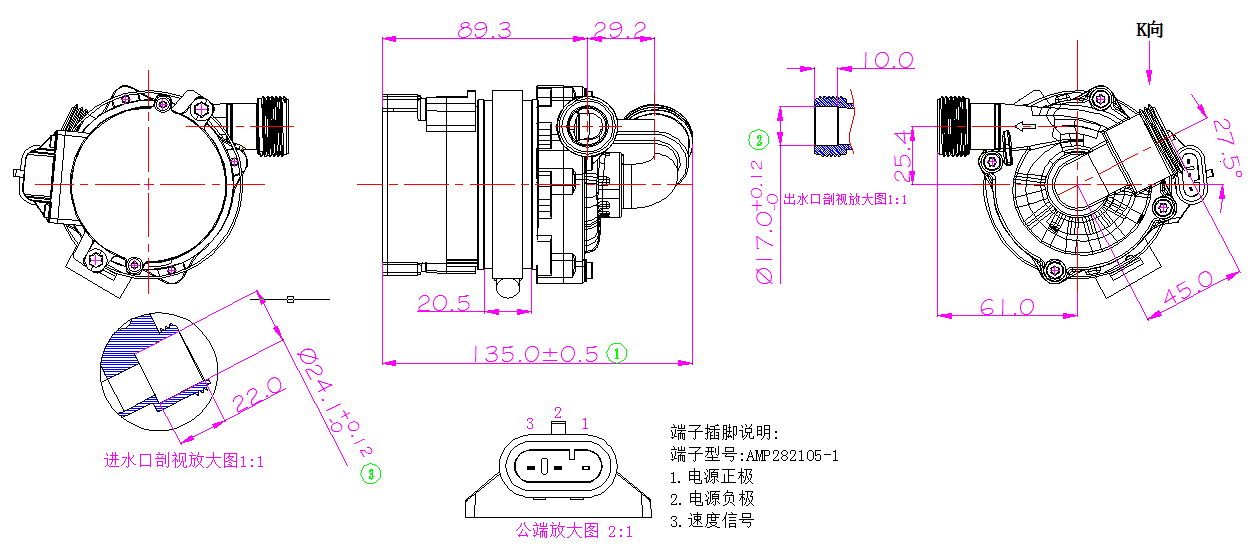

    dp8003 pump size
